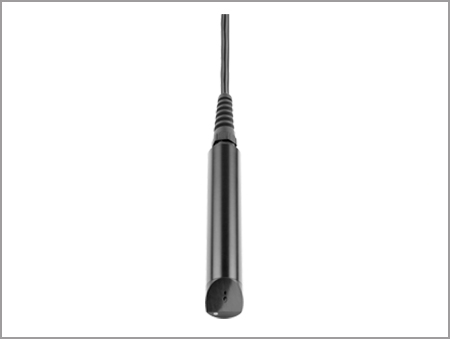

Optical Sensor for Turbidity Measurements (202670)
Description
The is an optical sensor designed to measure turbidity in aqueous solutions. The wide measuring range of the sensor enables its deployment in many applications. The turbidity measured value is automatically transferred without interference via a digital interface to the connected indicating device with integrated controller. The current calibration data is saved directly in the sensor electronics. This allows the simple and fast startup of the sensor on-site without recalibration. The sensor also includes a log book containing the last 10 successful calibrations in the form of a ring buffer.
Features
- Measuring method based on the 90° scattered light procedure according to DIN EN ISO 7027
- Entire measuring range 0 to 4000 NTU
- 4 single measuring ranges adjustable as well as automatic measuring range detection
- Secure, digital measured value transmission
- High measuring accuracy, even for low turbidity
- Integrated temperature sensor
- Quick response time
- Sensor is precalibrated prior to shipment
- Protection type IP68
- Operating temperature from 0 to 50 °C
- Safe use when the corresponding fittings are used
Customer Benefits
- Versatile application options due to wide measuring range
- Acquisition of both low and high turbidities
- Secure measured value transmission even over long distances
- Simple on-site startup through precalibrated sensor
- No spare parts required
- Low operating costs, long operating life
Applications
- Process monitoring in the treatment of drinking water and wastewater
- Municipal and industrial sewage treatment plants
- Water body monitoring
- Fish farming companies
- Galvanic
- Process plants
