Radar Level Transmitter

Radar Level Transmitter

RADAR LEVEL TRANSMITTER (FOR POWDER)

Measurement of powder level Measurement range 0.3(from end of antenna)to 70.0m Accuracy ±0.25％ F.S.

The Radar Level Transmitter is designed specitically for medium/long range measurement of all kinds of power,particle and bulk solids. The compact and high directional system with usage of higher frequency can reazlize the more stable level measurement. Adjustments can be done by entering simple parameters. The air purge function is normally integrated and there are many options such as angle adjustment for wider range of installation environments.

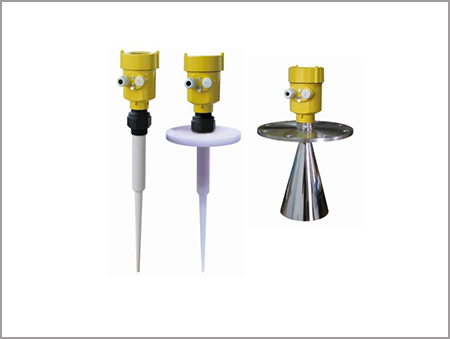

RADAR LEVEL TRANSMITTER (FOR LIQUID)

Measurement of liquid level Measurement range　0.3(from end of antenna)to 10.0m Accuracy　±0.25％ F.S

The Radar Level Transmitter is designed specitically for short/medium range measurement of liquid,sludge and slurry. The compact and high directional system with usage of higher frequency can reazlize the more stable level measurement. Adjustments can be done by entering simple parameters. The air purge function is normally integrated and there are many options such as angle adjustment for wider range of installation environments.
